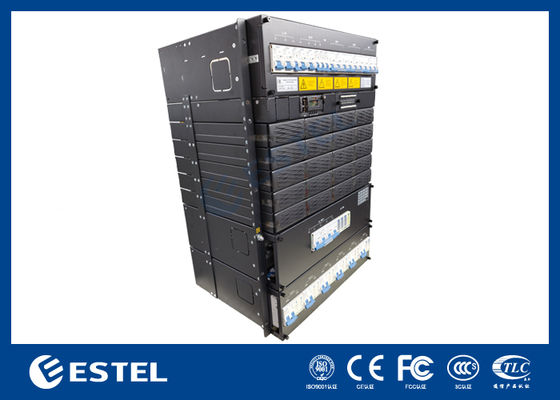

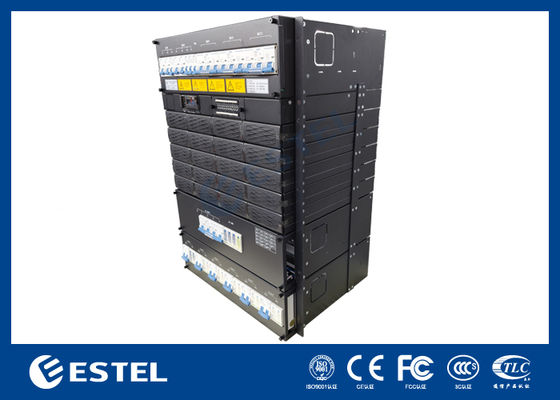

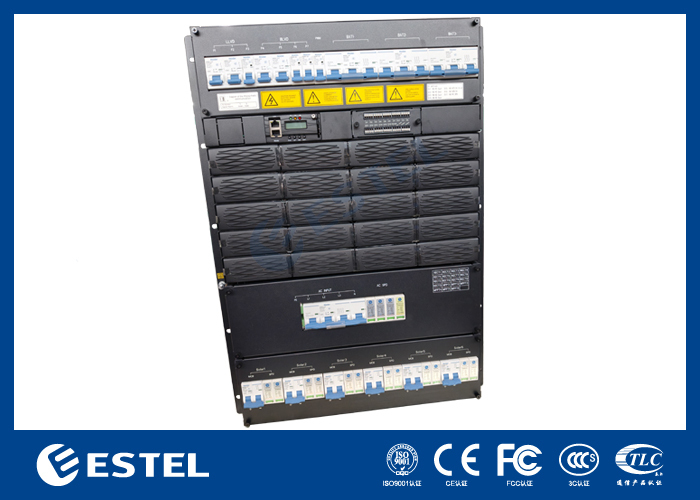

15U Sub-Rack Power Supply 3000W 48V 650A AC Input Telecom Power System

15U Sub-Rack Power Supply 3000W 48V 650A AC Input Telecom Power System
15U Sub-Rack Power Supply 3000W 48V 650A AC Input Telecom Power System 15U Sub-Rack Power Supply 3000W 48V 650A AC Input Telecom Power System 15U Sub-Rack Power Supply 3000W 48V 650A AC Input Telecom Power System

Большие изображения :  15U Sub-Rack Power Supply 3000W 48V 650A AC Input Telecom Power System

Подробная информация о продукте:
Место происхождения: Шэньчжэнь, Китай (материка)
Фирменное наименование: ESTEL
Сертификация: ISO9001, CE, 3C, FCC, TLC
Номер модели: IPUM39K-B5D1315
Оплата и доставка Условия:
Количество мин заказа: 1
Цена: 715-4286 usd
Упаковывая детали: Картон/деревянный корпус
Время доставки: 7-10 рабочих дней
Условия оплаты: L/C, D/A, D/P, T/T, Western Union
Поставка способности: 20 000 комплектов в месяц
Подробное описание продукта
Сила выхода модуля выпрямителя тока: 3000 Вт Приложение: Промышленное оборудование
Коэффициент мощности: ≥ 0.99 Входная частота: 47 Гц ≈ 63 Гц
Течение выхода Максимальн Выпрямителя тока Модуля: 30A Подробная информация о упаковке:: Картон/деревянный корпус
Выходное напряжение: AC220V или DC48V Стандартный: ГБ 4943
Выделить:

15U telecom power supply 3000W

,

48V telecom power system 650A

,

AC input telecom power supply

Multipurpose Industrial Power Supplies System



  • IPUM39K-B5D1315 System Configuration Description

IPUM39K-B5D1315 sub-rack power supply, 15U height compact design to meet

critical application needs of fiber and microwave transmission, access

device, switch. The system maximum power is 3000KW, with AC/battery/load

MCBs. The cables are front accessing with MCB and busbar.

  • Standard 19-inch width which has the advantage of wide use
  • 15U height compact design, space and installation cost can be saved
  • Front operation and cable accessing, good-looking and safe maintenance
  • Perfect battery management, prolongs the life of the battery well provide
  • various communication ports, RS485, internet port, dry contacts, etc.which enables flexible networking and remote monitoring
  • Rectifier and controller are hot pluggable, easy and quick on-line maintenance
  • Wide input voltage range(85-300Vac) the power grid is adaptable

IPUM39K-B5D1315 consists of distribution unit, rectifier module, conversion module, monitoring module. The configuration is optional, as table below:



Configuration Rectifier module Remark
Standard GB 4943 For details, please refer to the specifications of modules
Standard IEC/EN 62368-1
Standard EN 55032 Class A,GR1089 Issue 4 ,R3-10, R3-11, R3-12 Class B certified by North America
Standard EN300386,CLASSA



IPUM39K-B5D1315 construction



IPUM39K-B5D1315 consists of two modules:

Rectifier module (MR483000HG2B)

Photovoltaic module

Battery breakers : 3*125A/3P+4*M8 bolt(BAT-),

Load breakers

LLVD MCB: 2*125A/1P, 1*25A/1P
BLVD MCB:2*125A/1P, 2*6A/1P



Quick Details:



Place of Origin: Shenzhen, China (Mainland) Input Voltage: AC220V or DC48V
Brand Name: ESTEL Output Voltage: AC220V or DC48V
Model Number:IPUM39K-B5D1315 Rectifier Module Output Power: 3000KW
Product Name: Industrial Power Supplies Input Frequency 47Hz~63Hz
Certification: ISO9001, CE, 3C, FCC, TLC Max. Rectifier Module Output Current: 50A
Application: Industrial Equipment Power Factor: ≥0.99



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C, D/A, D/P,T/T, Western Union
Supply Ability: 20,000 sets per month
Delivery Time: 7-10 working days
Packaging Details: carton/wooden case



Two operating methods:



(1) AC input: Startup rectifier module after AC powered-on, outputs -48Vdc, at the same time charge the battery and power the conversion module, conversion module outputs 220Vac.

Under normal conditions, the parameters of rectifier module and distribution unit are all under controll of the monitoring module, operating according to the preset parameters or user’s commands. If AC mains fault, the battery will power to the system, and continue outputing - 48 VDC and 220 vac, with the discharge of the battery, the voltage of the battery starts to descend, when the voltage is under 43.2 V + / - 0.5 V, the monitoring module send battery under-voltage signal and close the load output directly, then the power system will stop working. When external AC mains recovers, the system will normally work again. (All above monitoring data are system default values and can be reset by user)

(2) -48V input: No AC current or no AC be connected, access external power -48V to -48V load port, startup monitoring and conversion module, 220Vac output.



Temperature compensation function is on by default, which can be activated or forbiddened by user’s command if necessary. Operation temperature ≥55℃, the power output of the power supply will be linearly reduced (@65℃,output power will be 1300W).



Specifications



Rectifier Module dimension as below:



Insulation rating
parameter Standard Remark
Insulating strength(AC input) Input-Output:3500Vdc/10mA//1min

No flashover or breakdown.

Remove discharge tube/surge protection device before testing, no rectifier module or monitoring module.

Output with 2 routes low-voltage terminal, high-voltage with AC bypass function, not to be tested.

Input-enclosure:3500Vdc/10mA//1min
Output-enclosure:750Vdc/10mA//1min
Insulating strength(DC input) Input-Output:750Vdc/10mA//1min
Input-enclosure:750Vdc/10mA//1min
Output-enclosure:750Vdc/10mA//1min
Leakage current ≤3.5mA 280Vac input,output full-load
Insulation resistance @ Normal atmosphere, relative humidity of 90%, Test voltage of DC 500V,the insulation resistance of input-output, input-ground, output-ground shall not be less than 10MΩ. Output with 2 routes low-voltage terminal, high-voltage with AC bypass function, not to be tested.



Environment
Parameter Min. Typ. Max. Unit Remark
Operation temperature range -5 25 +55 °C
Storage temperature -40   +70 °C
Relative humidity 5   95 % Long-term operating, no condensing
Atmosphere pressure 70   106 KPa
Altitude 0   3000 m
Cooling Forced cooling, front-in & rear-out; the fan locates in front panel, with temperature controlled speed.
Water & dust proofing level

The power supply shall work properly under the following condition:

Density of dust diameter above 55µm≤3*104 granule/m3.

The dust granule is non-conductive, non-electromagnetic, non-corrosive, without water-proof function.



Application



(1) Integration access

(2) Indoor distribution and extension system

(3) Mobile station and extension coverage system

(4) WLAN

(5) Satellite communication ground station and microwave communication station

(6) Weak current distribution room

(7) Other AC/DC uninterruptible power system



Features



(1) Two outputs:-48Vdc, 220Vac

(2) Two inputs:-48Vdc, 220Vac

(3) Adoption of active power factor compensation technology, power factor >0.99

(4) Wide operating range of AC input voltage: 90~280Vac

(5) Wide operating temperature range:-5℃~+55℃

(6) Switch technology conducted,

(7) Perfect battery management prolongs battery lifetime: charge /discharge management, battery temperature compensation, low-voltage protection.

(8) Hot-swappable

(9) Input over/under voltage protection

(10) Output over-voltage protection, output over-current protection, output short-circuit protection

(11) Embedded / wall mounted

(12) RS485, RS232 communication interface



15U Sub-Rack Power Supply 3000W 48V 650A AC Input Telecom Power System 0
