Подробная информация о продукте:
Оплата и доставка Условия:
|
| Максимальная входная мощность (кВт): | 7,5-9 | MPPT Количество/максимальное количество параллельных строк: | 1/1 |
|---|---|---|---|
| Максимальное фотоэлектрическое входное напряжение (V): | 500 | Ряд напряжения тока MPPT (v): | 100 ~ 430 |
| Максимальный входный ток (A): | 32 | Ток короткого замыкания (а): | 37 |
| параметры оценены: | 48 | напряжение (v) напряжение аккумулятора: | 40~58 |
| Выделить: | off-grid inverter IP65 waterproof,three-phase solar inverter,1.5 times photovoltaic power inverter |
||

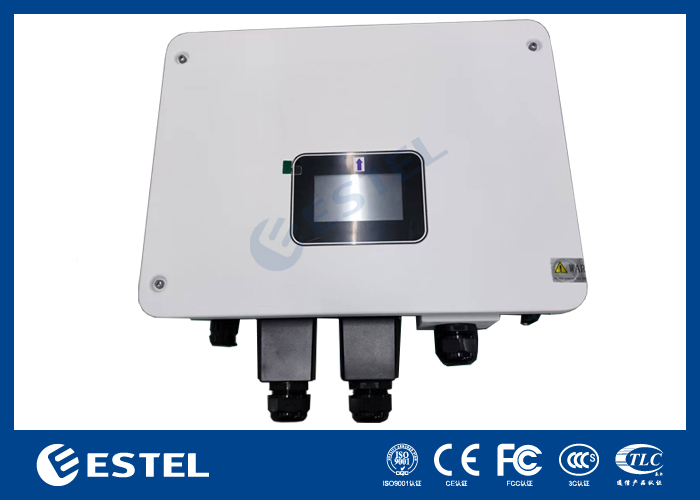

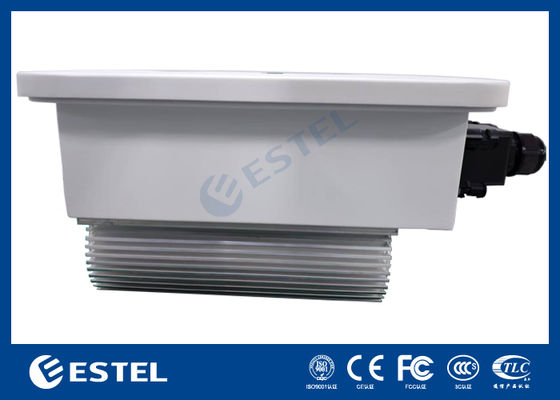

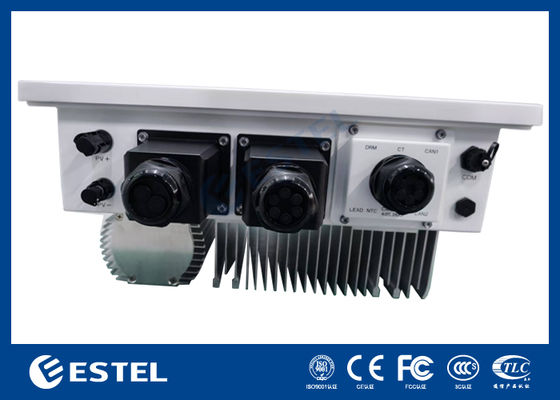

Off-Grid Inverter
Product Highlights
Strong adaptability to load and grid
Maximum 1.5 times photovoltaic power,no noise
Large touch screen design
Support 4 machinesin parallel
IP65 protection grade, product design has longer life
Support group three-phase function
| Model | 05KL1D | 06KL1D |
| Pholovtaic input parameters | ||
| Maximum input power (kM) | 7.5 | 9 |
| MPPT quantity/maximum number of parallel strings | 1-1 | |
| Maximum photovoltaic input voltage(V) | 500 | |
| MPPT voltage range(V) | 100~430 | |
| Maximum input current(A) | 32 | |
| Short-circuit curent (A) | 37 | |
| Battery parameters | |||
| Rated voltage(V) | 48 | ||
| Battery voltage range(V) | 40~58 | ||
| Maximum charge/discharge current(A) | 100/100 | 120/120 | |
| Battery Type | Lithium battery/lead-acid | ||
| Battery Charging Strategy | Adaptive BMS | ||
| Off-grid output | |||
| parameters Rated output power (kW) | 5 | 6 | |
| Rated output voltage (V) | 230 | ||
| Output frequency (Hz) | 50/60 | ||
| Maximum apparent output current (A) | 21.7 | 26 | |
| Maximum overcurrent output (A) | 26 | 31.2 | |
| Power factor | 1(0.8 leading-0.8 lagging) | ||
| THDu | <3% | ||
| Switching time (ms) | 10 | ||
| Grid input parameters | |||
| Rated input voltage (V) | 230 | ||
| Grid voltage input range (V) | 176~27050/60 | ||
| Rated grid frequency(Hz) | |||
| THDi | <3% | ||
| Grid type | L+N+PE | ||
| AC input (generator input) | |||
| maximum input power (kW) | 5 | 6 | |
| Maximum input current (A) | 21.7 | 26 | |
| Protect | |||
| lsland protection | support | ||
| Insuation reistance test | support | ||
| PV input reverse polarity protection | Support | ||
| Output overcurrent protection | Support | ||
| Output shortcircuit protection | Support | ||
| Output overvoltage protection | Support | ||
| Output undervoltage protection | Support | ||
| AC/DC surge protection | |||
| General parameters | |||
| Maximum effciency | 96% | ||
| operating temperature range(℃) | -25℃~+60 | ||
| Relative humidity | 5%-95% | ||
| Operating Altitude(m) | 0-2,000 | ||
| Protection level | IP65 | ||
| Weight(kg) | 17 | ||
| Dimensions W"D"H(mm) | 455*200*447 | ||
| Cooling method | Natural cooling | ||
| Noise(dB) | <35 | ||
| Display | Color screen | ||
| RS485/Mifi/GPRSICAN/DRM communication | Available/Optional/Optional/Available/Available | ||
| Topology | Non-isolated | ||
